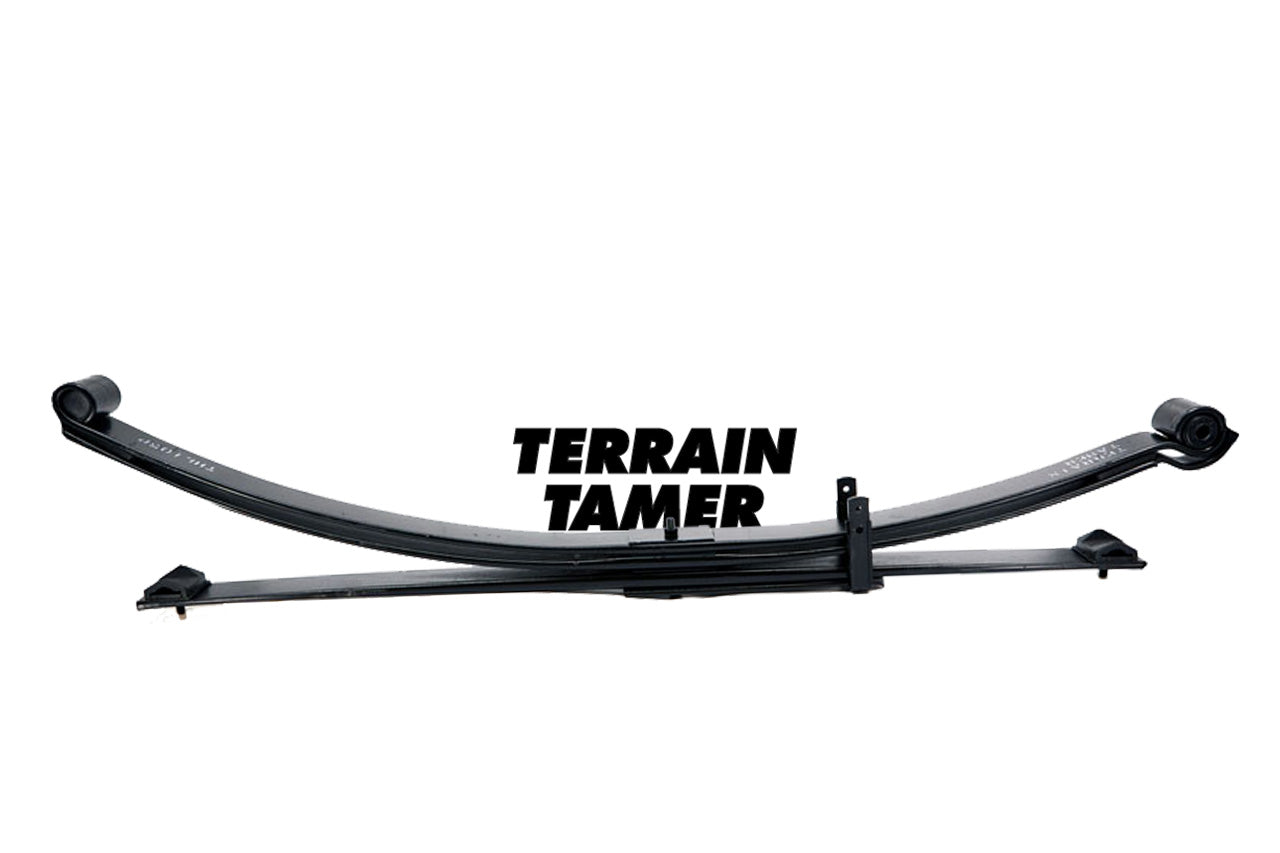

Ford Ranger PX1, PX2, PX3 Parabolic Leaf Spring - Terrain Tamer

This is for 1 x parabolic leaf spring. If you require a pair, please select “2” under quantity and add to cart.

Terrain Tamer Parabolic Leaf Springs are designed for the ultimate ride quality.

Traditional 4WD leaf springs are often thick, heavy, uncomfortable and loud, offering little to no flex. In response to this Terrain Tamer developed their 4WD Parabolic Leaf Springs, applying a carefully researched design and modern technology to a well-established idea from the trucking industry.

Utilising new technology on an old design, the parabolic springs allow for a comfortable ride whether the vehicle is fully loaded or empty.

• Lighter – Less unsprung weight
• Less Shock – Less shock load on the differential gears
• Quieter – The leafs do not touch each other
• Comfortable – With better articulation
• Strong – Exceptional load carrying capability

This design of Parabolic Springs eliminates the weight of often heavy, thick, traditional leaf packs and dramatically reducing the unsprung weight of the vehicle, essentially freeing up the weight needed for practical use. This lower unsprung weight addresses the issue of GVM limits, and also acts to create a more comfortable ride when the vehicle is unloaded, accommodating the varying and ever-changing applications that the modern day 4WD is used for, freeing up weight for towing heavy loads, carrying tools or touring with the family, and ensuring it is comfortable whether empty or loaded. The Parabolic shape also provides better axle articulation, as well as almost no interleaf friction, allowing the spring to compress or extend with ease without touching each other until there is a reasonable load on the vehicle. This feature means that the springs are not only quieter, but it also acts to help minimise any issues with rust build up, which can be a major cause of failure in standard leaf springs.

Parabolic Leaf Springs typically contain fewer leafs than traditional leaf packs and get their name from their tapered “parabolic” design, meaning they are thicker in the centre and thinner at the ends. Already a well-established idea in the trucking industry, Terrain Tamer have applied their own carefully researched design and modern technology, and use a special grade steel to develop their range of Parabolic Leaf Springs specifically for 4WD vehicles.
