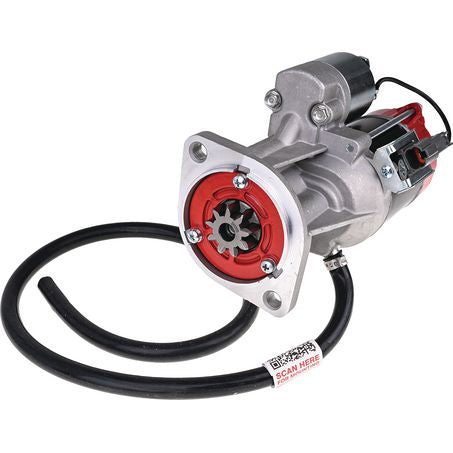

Nissan Patrol ZD30 Starter Motor WATER RESISTANT HEAVY DUTY

Specifications

• Voltage: 12V
  * Power Rating: 2.5kW
  * Number of Teeth: 9
  * Flange Diameter: 82mm
  * Mount Centres A: 110mm
  * Mount Hole Diameter: 11mm
  * Overall Length: 214mm
  * Pinion Diameter: 36mm
  * Pinion at Rest: 11mm
  * Rotation: CW
  * Suits Unit Make: Hitachi
  * Starter Mount Type: 2 Hole
  * OEM Number: HXS076
  * Weight: 4.68kg
  * Unit Type: New

Vehicle Applications

Commonly fitted to:

* Nissan Patrol / Patrol GR / Safari (GU / Y61 IV DTi) 3.0L ZD30DDTi Turbo Diesel SUV AWD (05/2000 →)
* Nissan Patrol / Patrol GR / Safari TY61 IV 3.0L ZD30DDTi Turbo Diesel Cab Chassis AWD (09/2007 – 12/2016)
